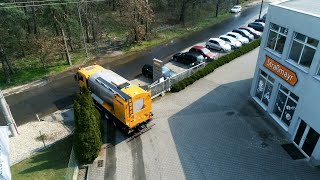

Новый автогудронатор Strassmayr TS Platinum

Strassmayr Platinum emulsion sprayers are the most technologically advanced from the entire line-up. Machine’s purpose is to spray the surface with the highest precision and effectiveness. The operator is able to control the unit directly from the driver’s cabin on the large touch screen covering all the functions of the machine. Fully automatic cleaning installation and speed addicted spraying make TS Platinum the most high-tech solution in road building industry.


Models available in Platinum line:
Model TS 8 000 Platinum TS 10 000 Platinum TS 12 000 Platinum
Capacity of emulsion 8 000 l 10 000 l 12 000 l



Main engine
HATZ 3H50T
fulfilling exhaust emissions regulation EPA Tier 4 Final
vertical 3-cylinder liquid cooled Diesel
engine power 18,4 kW (25 PS)
engine radiator with fan

hydraulic pump driving all the functions
hydraulic oil tank with filter and temperature/oil level indicator


Engine compartment
made of steel structure, placed in the rear of the unit, equipped with two independent shutters to be operated manually

includes engine with radiator, hydraulic installation driving all the functions, emulsion pump, filter

Emulsion tank
steel structure, painted, insulated with 100 mm of rockwool and covered with stainless steel sheets

elliptic profile of the emulsion tank for lowering the center of gravity and reduction of unit’s length

emulsion tank filling indicator at the side of a tank
emulsion output connection with fire tip
gravity release in case of emergency

ladder allowing entrance on the emulsion tank

Emulsion installation
emulsion pump Varisco V-80
with the efficiency of 800 l/min
with hydraulic drive
with coat heating system

all circuit valves operated pneumatically
initiation and switch of functions carried out at the operator touch screen
emulsion filter with coat heating system
special drawer protecting against stains
spraying lance with hose of 5,0 m length





Emulsion heating installation
fully automatic heating installation of emulsion
heating system consisting of Riello light oil burner, temperature controlled electronically through the PLC system

Emulsion spraying bar type HSB 4000/125
smooth and step-less hydraulic regulation of working width in the range of 2 500 – 4 000 mm
total width of the spraying bar 4 000 mm, transport width 2 500 mm

triple-piece spray bar with two extensions to be opened with hydraulic cylinders
hydraulic regulation of the spray bar height
distance between nozzles of 125 mm - ensuring double coverage by use of 60 degree nozzles
(use of 90 degrees nozzles ensures the triple spraying pattern)

special rubber cover of spraying bar

pneumatic cylinders opening and closing single nozzles

single nozzles with simple and trouble-free exchange system


Cleaning installation
fully automatic two step cleaning system for emulsion installation:
1. pre-compressed air insufflation
2. rinsing with cleaning liquid

initiation of cleaning procedure from the operator panel in the truck cabin


Computer control
fully automatic, computer controlled installation of spraying process
automatically controlled pneumatic valves for emulsion circuit

computer control ensures the maintaining of constant pressure of spraying emulsion, even by changing speed, or spraying width

operation of all the functions is controlled by the computer (SPS Siemens) with touch screen panel

computer program ensures additionally: counting of the sprayed surface, counting of the job distance, additional regulation +/- without changing the basic set up

digital indicators show: set-up quantity of spraying in kg/m2, switched on nozzles, working width, amount of emulsion in the tank, working speed (will be used also as a speedometer by slow drive), instantaneous pressure of spraying, temperature of emulsion, temperature during circulation and more


Operator panel
assembled in the truck driver’s cabin
allows switching on and off all main functions through SIEMENS touch screen
operation of all functions of the machine
including full control of Kubota diesel engine


Strassmayr App
system with GPS and GSM which allows to collect information about performed work
system recognizes the location of the machine and saves it on the server
system alerting the customer, distributor and manufacturer when the service deadline is approaching with a list of needed spare parts and the scope of service work











Additional equipment



2 rear cameras with monitor
assembled at rear side of the machine
with monitor mounted in the drivers cabin
with all necessary connections
allowing control of edge of sprayed surface

Printer, mounted in the drivers cabin
allowing printing of main job’s information
protocol in format A4

Additional system of “night heating”
two stage oil burner RIELLO RG2D
automatic heating system based on one burner

Additional heating for the spraying bar
with special heat exchanger
no risk of solidification of emulsion in the spraying bar

Additional water bin, integrated with the cover of emulsion bin
capacity of water bin 2 000 liters
water tank made of steel, integrated with the body of the emulsion tank
mechanical indication of water level in the tank
electric water pump

Emulsion spraying bar HSB 4000/100
with step-less hydraulic regulation of working width
total width of the spraying bar 4 000 mm, transport width 2 500 mm
triple spraying bar, with two extensions to be opened with hydraulic drive
hydraulic regulation of the spraying bar height, distance between nozzles of 100 mm

Emulsion spraying bar HSB 5000/125
with step-less hydraulic regulation of working width
total width of the spraying bar 5 000 mm, transport width 2 500 mm
triple spraying bar, with two extensions to be opened with hydraulic drive
hydraulic regulation of the spraying bar height, distance between nozzles of 125 mm

Additional horizontal spray bar shift
range of adjustment up to 30 cm in both directions (left & right)
especially useful by spraying the bend of road
ready for assembly by each type of spray bar

Cleaning brush Strassmayr SW 2000
cleaning drum 2300 mm width
hydraulic motor driving the unit (PTO drive by truck required)
street lamps with necessary connections
mounting frame (requiring EU front plate by truck)
smooth regulation of cleaning brush height
smooth regulation of cleaning brush yaw angle
operator panel
connected with the unit by electric cable
to be placed in the drivers cabin of the truck
allows operation of all main functions of cleaning brush

PTO drive system for the sweeper SW 2300
hydraulic pump with required connections
operation from the truck cabin

Electronic system “E-service”
based on internet connection, using SIM card of a customer
allowing immediate interference in the computer system in case of problem
quick check of parameters and possible mistakes
operated by specialist of Strassmayr

Set of legs with frame
storage system for sprayer, to be used when empty
